In this example, we'll look for the class for low power resistors, using pictures.

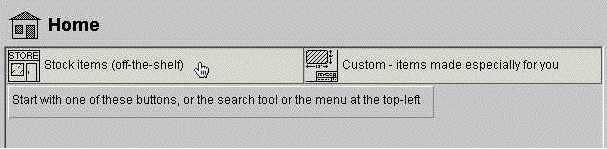

Start with the buttons in the Class panel.

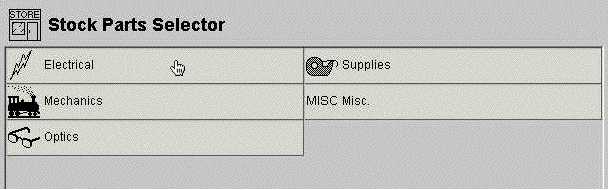

As this is a standard, off-the-shelf component, click "Stock"..

Click Stock

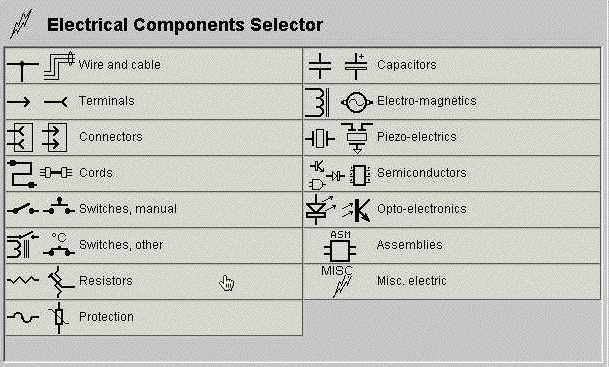

  As this is an electrical component, click "Electrical"..

Click Electrical

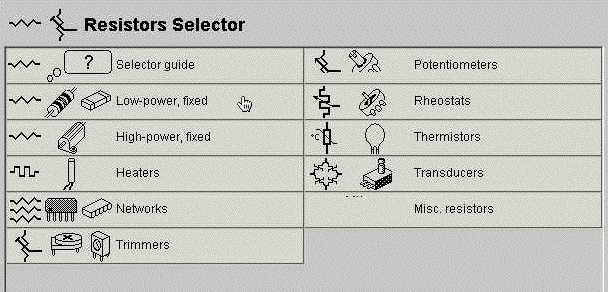

  As this is a resistive component, click "Resistors"..

Click Resistors

  As this is a low power, fixed (not variable) resistor, click "Low Power, fixed"..

Click low power fixed resistors

  We have selected the low-power resistor class.
Resistor class card

Later we'll see how we'll use the tools in this Class panel to specify a particular resistor.
